Complete Master of FPV Drone Motors — From Pole Count to KV, Motor Selection Determines Flight Performance

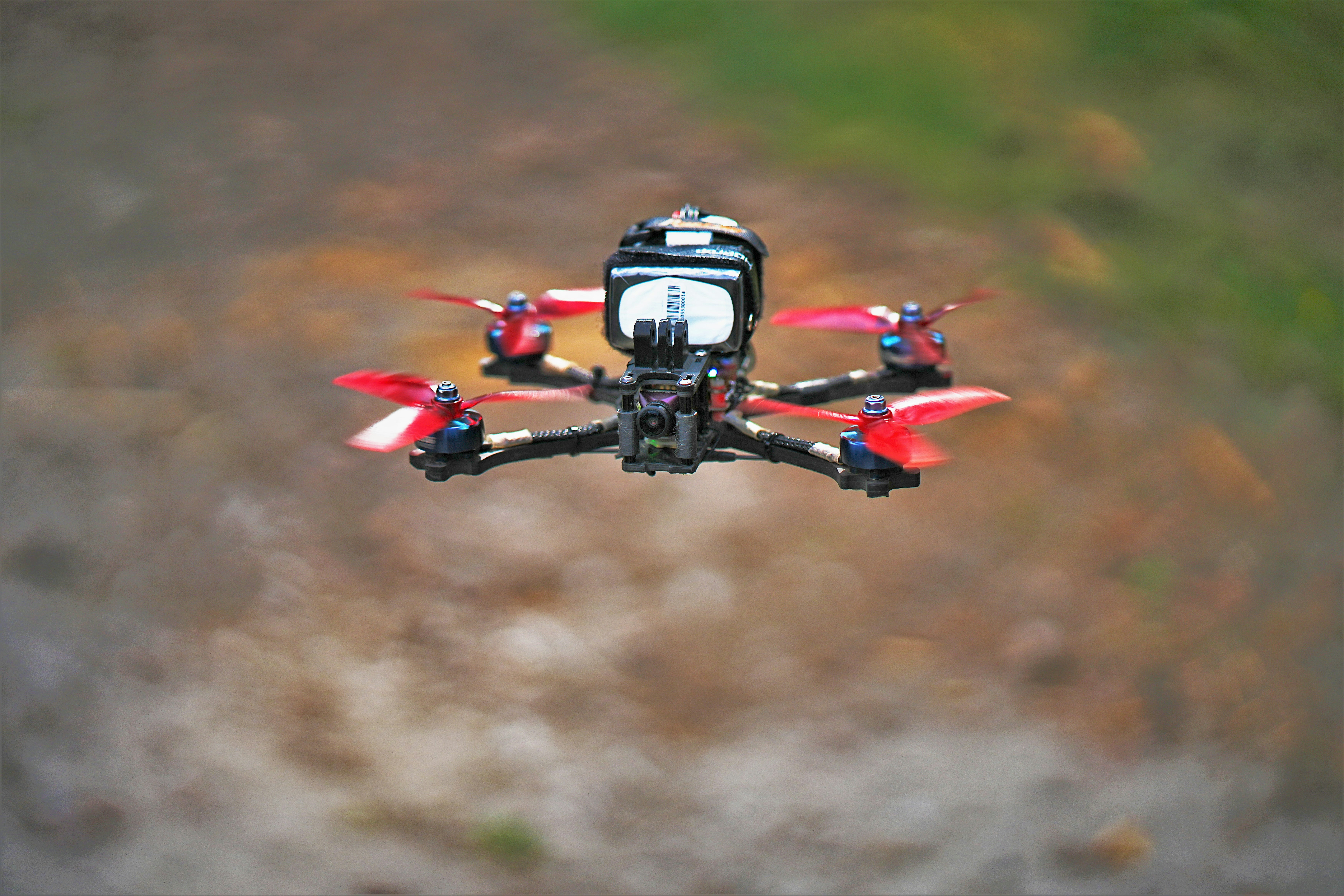

Photo by Benedikt Zinn on Unsplash

---

When assembling an FPV drone for the first time, many beginners think they only need to pay attention to the frame or battery. However, the truly important component is something else. It's the motor. The motor is located at the end of the drone's four arms and is like the heart that rotates the propeller to create thrust. Even with the same size frame, how the flight feels, response speed, and battery efficiency change completely depending on which motor you choose.

KV Value Determines Your Flight

KV is a unit that represents the motor's rotation speed, meaning the revolutions per minute (RPM) at 1V of voltage. For example, a 2400KV motor means it rotates at 2400rpm at 1V. The higher the KV value, the faster the rotation becomes, resulting in excellent acceleration. The lower the KV value, the stronger the torque becomes, which is advantageous for carrying heavy loads or flying slowly.

For beginners, a 2200~2800KV motor on a 3~5 inch frame is typically recommended. This range provides both sufficient acceleration and battery efficiency. If you're doing high-altitude flying or attaching a heavy camera, you should lower it to 1900~2200KV. If you want a lightweight racing drone, you can also consider 3000KV or higher.

Pole Count is the Key to Performance

FPV motors have magnets and coils inside, and the number of magnets is called poles. Typically, 12-pole and 14-pole are used. 12-pole is a traditional design with excellent cost-effectiveness and high reliability. 14-pole is characterized by smoother torque delivery and lower rotation noise, but is slightly more expensive.

Most beginners are fine with 12-pole, but if you primarily do cinematic flying or are sensitive to noise, choosing 14-pole is also a good option.

Motor Size Selection Criteria

Motor size is indicated with a 4-digit number like "2207." The first two digits represent the stator diameter (22mm), and the last two digits represent the height (07mm). The larger the frame size and the heavier the payload you carry, the larger motor you need. A 5-inch frame typically uses 2205~2306 motors, while 6-inch and larger frames sometimes use larger motors like 2806 or 3508.

Proper Motor Installation Method

When you buy a motor and install it on your drone, there are important things to note. First, check the motor direction. Usually there are two types: CW (clockwise) and CCW (counterclockwise), and motors positioned diagonally should rotate in the same direction. When installing, be careful not to bend or pinch the motor wires, and tighten the screws moderately. If you tighten them too tightly, the motor may be damaged, and if you leave them too loose, vibration will occur.

Improving Flight Feel with Motor Tuning

Before the first flight after installing a new motor, you must perform a boot sequence. When you connect the battery, the motor emits a specific sound signal, which indicates that the ESC (electronic speed controller) has recognized the motor. If you hear an unusual sound, immediately disconnect the battery and check the motor connections.

After flying, check the motor temperature. During normal flight it should be warm, but if it's too hot to touch, there's a problem. This signals that the motor is under excessive load, so you should lower the KV or change the propeller.

Tips for Extending Motor Life

Motors are components with a relatively short replacement cycle among FPV drone parts. To extend their life, clean them regularly and be careful to prevent water or dust from entering. After a crash, always check that the motor rotates freely. If rotation is stiff, the bearings may be damaged and need replacement.

Motor selection is one of the most important decisions when assembling an FPV drone. If you choose by comprehensively considering your flying style, frame size, and budget, you'll be able to have a truly comfortable flying experience.
