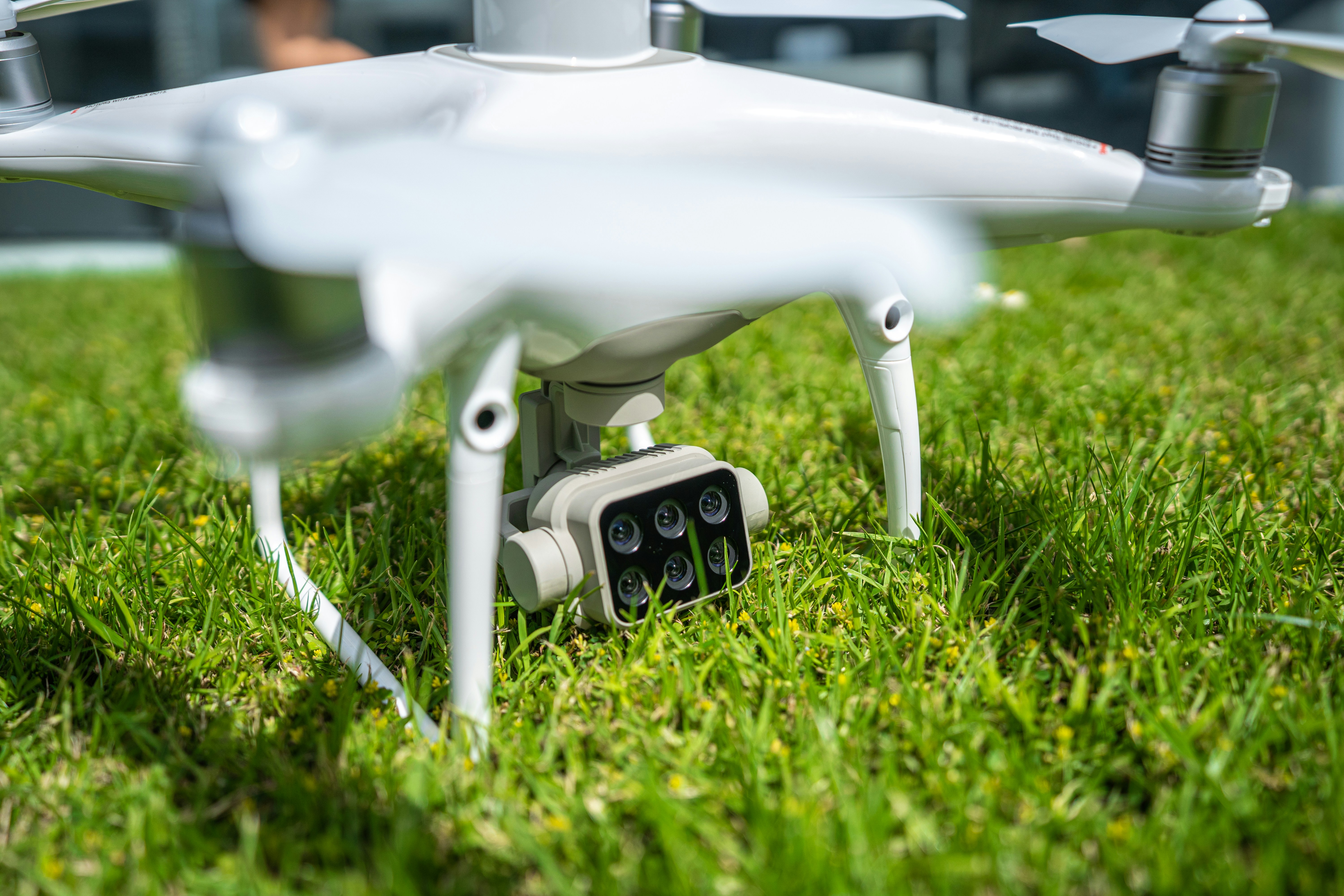

Photo by Ferntech DJI on Unsplash

---

Is your drone constantly drifting to one side? Is your goggle footage shaky? The problem might not be the components, but the sensors. The sensors mounted on an FPV drone's flight controller (FC) are the "brain" that detects movement and maintains attitude. However, many beginners skip sensor calibration after assembly, which often leads to flight issues. In this post, we will cover everything you need to know about understanding and correctly calibrating FPV drone sensors.

Roles and Types of Sensors

An FPV drone's FC typically contains three primary sensors. First, the Gyroscope detects the drone's rotational speed. By measuring rotation on the roll, pitch, and yaw axes, it provides the most critical data for PID control. Without accurate gyro calibration, the drone might perceive itself as tilted when it is actually level, or it might fail to recognize an actual tilt.

Next is the Accelerometer. This sensor detects gravity and acceleration to determine the drone's absolute horizontal level. It is crucial for stabilized modes (Angle/Horizon Mode); if the accelerometer is inaccurate, the "self-leveling" will be imperfect. Finally, the Compass (Magnetometer) detects the Earth's magnetic field to recognize the drone's heading. This is particularly essential for long-range flights or when using GPS Return-to-Home (RTH) features.

Why Calibration is Necessary

The reason sensor calibration is required is that sensors are ultimately electronic components. Vibrations during transport, pressure applied during the assembly process, and extreme temperature changes can all affect a sensor's accuracy. You must calibrate your sensors especially during the first flight after assembly, after a crash, or when installing a new FC.

Gyro Calibration in Betaflight

In the Betaflight Configurator, navigate to the Setup or Calibration tab. Gyro calibration is simple. Place the drone perfectly still (ideally on a level surface) and click the 'Calibrate Gyro' button. You must not move the drone at all during this process. After waiting for 2–3 seconds, the gyro offset values will be automatically set. It is normal for these values (usually Gyro Offset X, Y, Z) to be close to 0.

Accelerometer Calibration

The accelerometer requires a bit more care. After selecting the 'Calibrate Accel' option in Betaflight, ensure the drone is on a perfectly level surface before clicking the button. Some advanced users perform a multi-axis calibration by pointing each side of the drone (front, back, left, right, top, and bottom) toward the direction of the FC sensor in sequence. While this multi-point calibration is more accurate, the standard procedure is a single calibration in a level position.

Compass Calibration — The Most Complex Part

The compass is highly vulnerable to surrounding magnetic interference. Since motors, ESCs, and power wires all generate magnetic fields, compass calibration must be performed carefully. After selecting 'Calibrate Compass' in Betaflight, rotate the drone slowly (over a period of 2–3 seconds per rotation) in all directions. Repeat figure-eight or circular motions several times. This process allows the compass to "learn" the surrounding magnetic environment. It is best to calibrate at the actual location where you intend to fly.

Post-Calibration Checklist

After completing calibration, there are a few things you must verify. First, without spinning the motors, check the real-time sensor values in the Sensors tab. The gyro values should be near 0 when the drone is stationary, and the accelerometer values should change smoothly when the drone is tilted slowly. The compass heading should change fluidly as you rotate the drone. If the values jump sharply or vibrate unstably, there may be a nearby source of magnetic interference or the sensor itself might be damaged.

Advanced Tip: Temperature Calibration

Temperature also impacts sensor accuracy. Sensor values can fluctuate between a warm indoor environment and a cold outdoor setting, especially in winter. By placing your drone outside for a few minutes to acclimate to the ambient temperature before calibrating, you can achieve much more stable flight performance.

The performance of an FPV drone comes from precise settings, not just the price of its parts. Sensor calibration takes only 10 minutes, but it can completely transform your flight experience. Check your sensor status right now before your next flight.
